Nano-resolution with ADVACAM WidePIX detectors and X-RAY WorX TCNF tube.

1. October 2020

Archieving the limits of resolution in nano X-ray inspection requires finding the most appropriate combination of X-ray detector and X-ray source. A joint project to explore the capabilities of their components was initiated by ADVACAM s.r.o from Prague and X-RAY WorX GmbH from Garbsen. The combination of ADVACAM’s photon counting WidePIX detectors with the submicron tube XWT-190-TCNF yielded a performance even below the tube’s nominal resolution of 0.5 microns.

ADVACAM develops the WidePIX line of high-resolution detector arrays with 55 microns pixel size using Si or CdTe sensors. By specifying energy bins, a very high sensitivity and low noise, especially for low contrast material, can be achieved. During the experiments, Si sensors of 500 microns thickness were used to image resolution test charts.

X-RAY WorX has designed the product line TCNF of submicron X-ray sources for highest resolution CT applications. Special diamond-based transmission targets and an internal cooling of the electron optics allow for various applications in semiconductor industry and material science.

For the experiments, the tube and detector were set up on a granite base. The resolution test charts were mounted on a micro-manipulator. Different exposure times were evaluated. At 50 seconds exposure, the 0.4 microns line patterns of JIMA RT RC-02b and NTT-AT X-Reso-100 were clearly resolved at voltages of 150kV and 190kV. At 100kV the 0.5 microns pattern of JIMA RT RC-02b was resolved. These results undercut the nominal values specified by X-RAY WorX for the product line TCNF by 20% (at 150kV and 190kV).

The joint experiments of ADVACAM and X-RAY WorX showed an amazing improvement of low contrast resolution when working with a photon counting detector. By excluding parts of the X-ray spectrum from the image, the WidePIX detector offers better contrast and unveils structures otherwise covered by quantum noise.

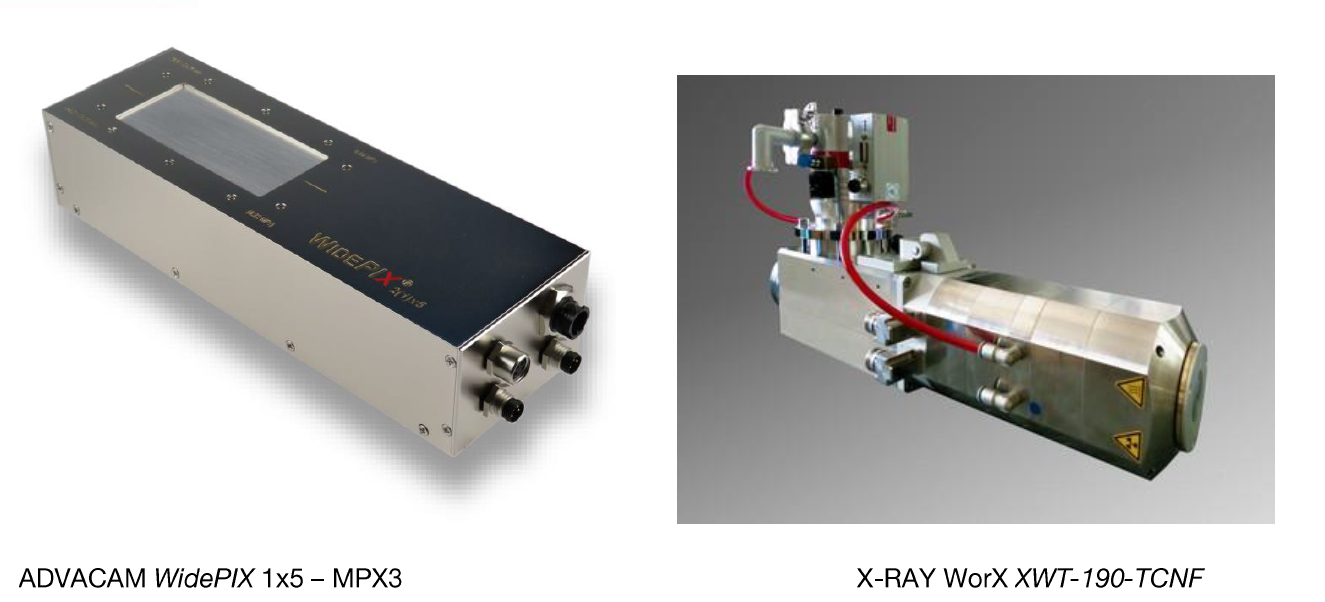

ADVACAM WidePIX 1×5 – MPX3


X-RAY WorX  Microfocus X-ray tube XWT-190-TCNF

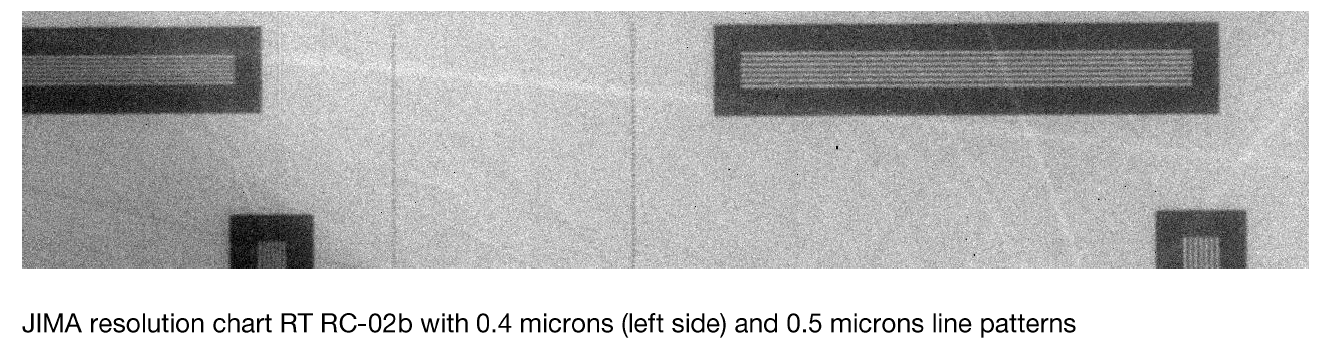

JIMA resolution chart RT RC-02b with 0.4 microns (left side) and 0.5 microns line patterns

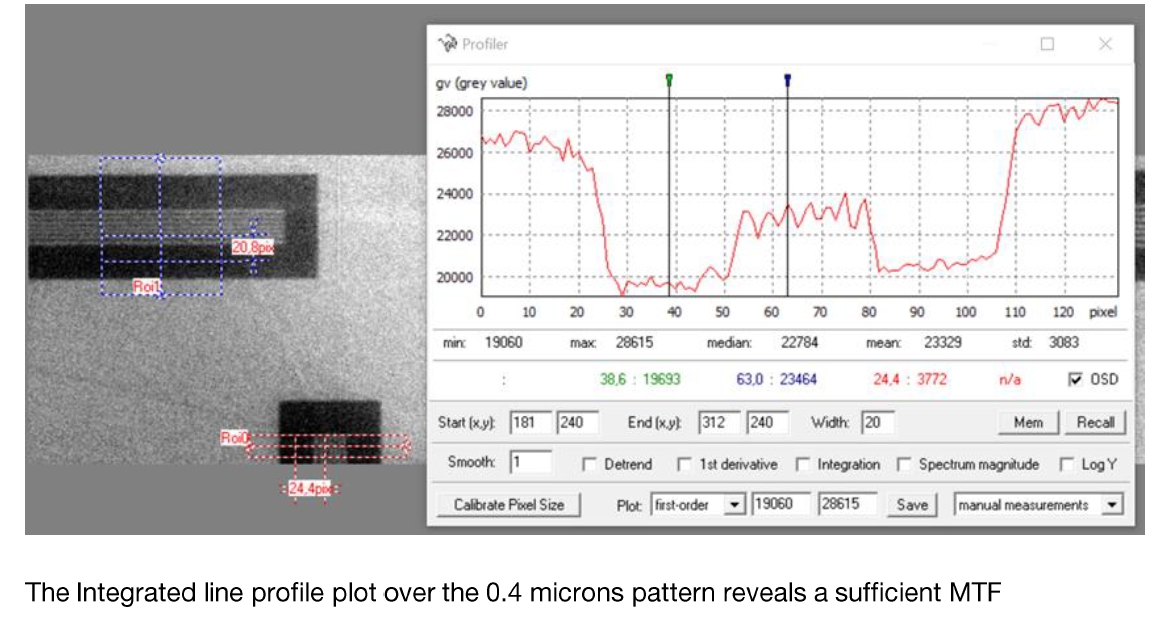

The Integrated line profile plot over the 0.4 microns pattern reveals a sufficient MTF


ADVACAM’s expertise includes the manufacture of semiconductor sensors, micro-packaging and X-ray detectors as well as the development of imaging solutions for industrial and academic requirements. ADVACAM markets the Medipix technology developed at CERN in Switzerland.
